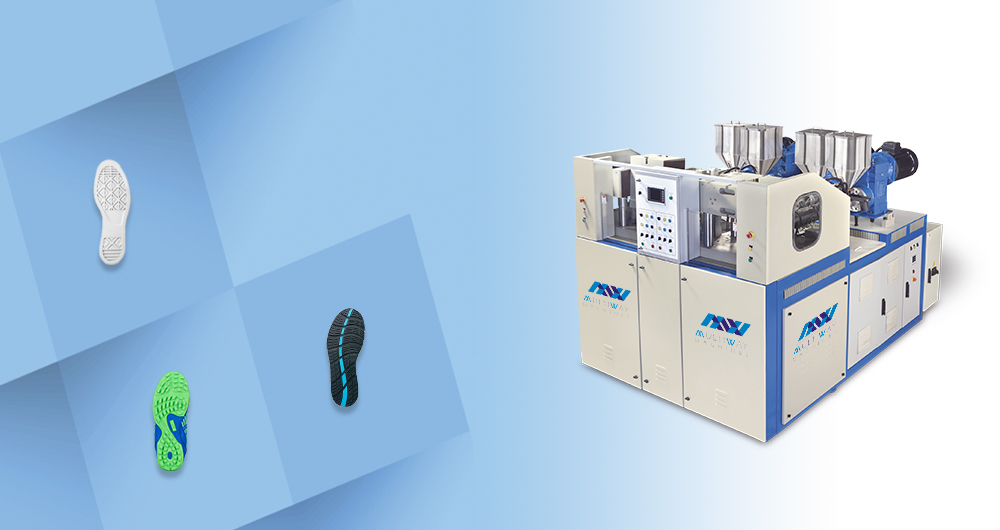

Sole molding Machine
Home / Solutions / Sole molding Machine
Sole molding Machine
| DETAIL SPECIFICATIONS | |
|---|---|
| Work Stations | 2 Nos. |
| Clamping Force | upto 150 tons |
| Opening Stroke | 350 mm |
| Mould Dimensions | 400 X 325 mm |
| Mould Opening+Mould | 380 mm |
| Rotating Head | 0~90~180 deg. |
| Total no. of Screws | 4 Nos. |
| Screw Diameter | 60 mm |
| Max RPM of Screw | 100 |
| Max Volume Displaced | 1000 cc |
| Barrel Heating | 7.2 x 4 kW |
| Hydraulic Units | 15+2.2 kW |
| Panel | 0.5 kW |
| ADDED PNEUMATIC & COOLING | |
| Oil Cooler | 8000 ltrs/hr pre cooled |
| Barrel Cooler | 4000 ltrs/hr pre cooled |
| Total Water Capacity | 2500 ltrs |
| Plexiglass | Pneumatic 200 ltrs/minute |
