Weighing and Mixing System
Home / Solutions / Weighing and Mixing System

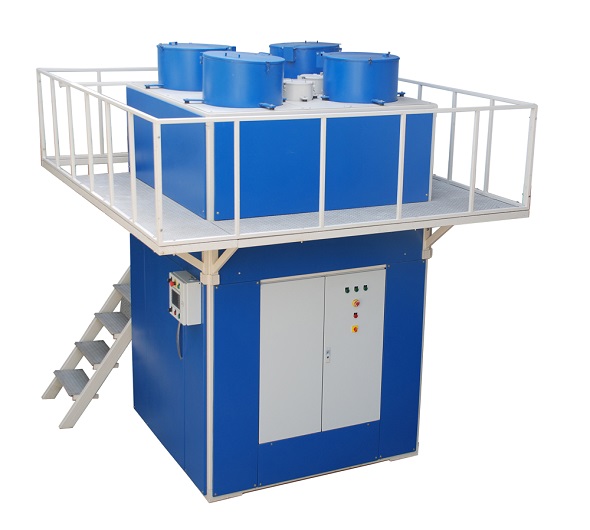

Weighing and Mixing System
| DETAIL SPECIFICATIONS | |
|---|---|
| MACHINE SIZE L X W X H | 10 X 9 X 10 FT |
| MACHINE WEIGHT | 1250 KGS APPROX. |
| FEEDING RAW MATERAIL HOPPER CAPACITY | UPTO 150 KG X 4 NOS. @ DENSITY 1 |
| BATCH HOPPER CAPACITY | 75 KGS X 1 NOS. @ DENSITY 1 |
| NO. OF FEEDING MATERIAL | 8 NOS ( AS PER CUSTOMER NEED) |
| BATCHING CAPACITY | 10 KG TO 50 KG |
| BATCHING RAW MATERIAL USED IN | POWDER , PALLETS, GRANULES, OIL, LI |
| ΒΌ HP MIXER MOTOR | BLADE TYPE MIXER ( SS 314 MATERAIL) |
| ALL HOPPER AND VALVE MATERAIL | SS 314 ( NON COROSIVE / FOOD GRADE) |
| FEEDING CONTROL | NEUMATIC BUTTERFLY / BALL VALE ( 24 V DC) & PNEUMATIC VIBRATOR |
| MACHINE CONTROL | B&R CONTROL WITH 4 NOS. LOAD CELL |
| MACHINE CONNECTIONG SUPPLY | 460VAC 50/60 HZ, 3 PHASE, 4 WIRE |
| AIR SUPPLY REQUIRED | 5 TO 6 BAR AIR PRESSURE |
| BATCH COLLECTION | SS DRUM WITH TROLLY FOR EASY OPERATION |
| MATERIAL MIXING SEQUENCE | CONFIGURABLE |
| BATCH MACHINE REPORT | ON OPERATOR SCREEN, PRINT THROUGH PRINTER, PEN DRIVE & COMPUTER CONNECTIVITY |
